2.4 mm Female 2 Hole Flange Connector

Introduction

Hualink 2.4 mm female 2 & 4 holes flange RF connector includes a air dielectric, a passivated stainless steel body, and a heavy gold plated beryllium copper. This 2.4 mm jack flange connector is developed for application up to 50 GHz and accepting .012 and .020 inch pin, it's easy to connect and disconnect on panel, which help customers to upgrade system easily. It's widely used in splitters, combiners, circulators etc. Comparing 2 holes design, 4 holes version provide firmer fixing but will take up more space. Launch pin and launch insulator are available.

Specification

Features and Benefits

● Gold Plated heat treated Becu Contact

● 2 and 4 Holes Flange Design, Panel Mount

● Reusable

● Good performance

● 100% inspection

● Customized design with one piece contact

Applications

● Instrumentation

● Satellite Communication Equipment (SATCOM)

● Splitters, combiners, circulators etc.

● General Purpose Test

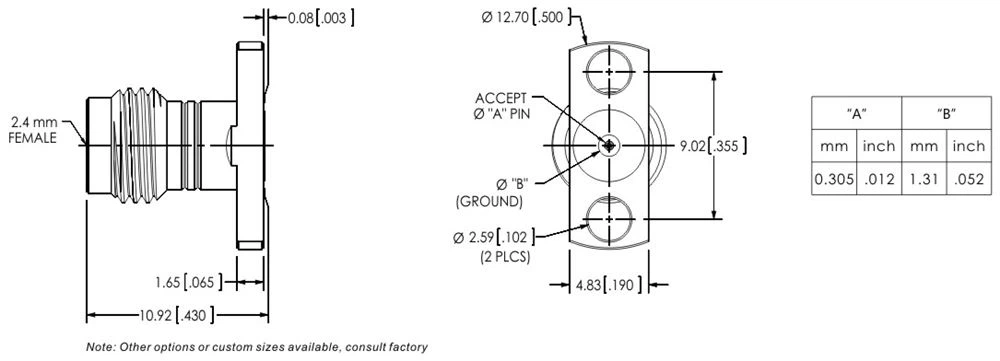

Outline Drawing

Related Product

Hualink PN	DESCRIPTION	Picture
24-P-PF-HPP-ST-TR0090-W1 24-S-PF-HPP-ST-TR0090-W1	2.4 mm Male / Female Straight Receptacle PCB Connector(2 holes Flange) Accept .009" pin
24-P-PF-HPP-ST-TR0090-W2 24-S-PF-HPP-ST-TR0090-W3	2.4 mm Male / Female Straight Receptacle PCB Connector(4 holes Flange) Accept .009" pin
24-P-PF-HPP-ST-TR0120-W1 24-S-PF-HPP-ST-TR0120-W1	2.4 mm Male / Female Straight Receptacle PCB Connector(2 hole Flange) Accept .012" pin
24-P-PF-HPP-ST-TR0120-W2 24-S-PF-HPP-ST-TR0120-W2	2.4 mm Male / Female Straight Receptacle PCB Connector(4 hole Flange) Accept .012" pin
24-P-PF-HPP-ST-TR0150-W1 24-S-PF-HPP-ST-TR0150-W1	2.4 mm Male Straight Receptacle PCB Connector(2 & 4 holes Flange) Accept .015" pin
24-P-PF-HPP-ST-TR0150-W2 24-S-PF-HPP-ST-TR0150-W2	2.4 mm Male / Female Straight Receptacle PCB Connector(4 hole Flange) Accept .020" pin
24-P-PF-HPP-ST-TR0180-W1 24-S-PF-HPP-ST-TR0180-W2	2.4 mm Male / Female Straight Receptacle PCB Connector(2 & 4 holes Flange) Accept .018" pin
24-P-PF-HPP-ST-TR0200-W1 24-S-PF-HPP-ST-TR0200-W2	2.4 mm Male / Female Straight Receptacle PCB Connector(2 hole Flange) Accept .015" pin

FAQ

1. What is a Connector?

A connector is a device used to connect to cables or other devices through which electromagnetic energy is transferred from one place to another.

■ Creates many impedance variations or discontinuities in a very short distance

■ Reflections are important, Attenuation not as important

2. What do connectors connect?

a) One side is typically a standard interface that mates to another interface

b) The other side typically connects to a transmission line like a cable or PCB

c) Adapters connect one interface to another

3. Coupling Style of RF Connectors

Each interface has a coupling style to suit its application

■ Thread

Threaded results in the most robust connection for superior electrical performance. Thread style is characterized by connecting the most reliable, high mechanical strength, good vibration resistance. Due to the mechanical properties of electrical performance for better testing instruments, military aviation. Common thread connector has SMA, Type N, 2.92 mm (K connector), 2.4 mm, 1.85 mm (V Connector) 1.0 mm, 7/16, etc...

■ Bayonet

Bayonet type connector has characteristics as rotated 90 degrees locking, connection speed, and stability. It is suitable for frequent handling equipment, widely used in network systems, instrumentation, and other fields. The BNC series is a typical bayonet connector.

■ Push on

Push on style is characterized by rapid connection and separation, small volume, lightweight. For the shell plate to plate connection, high-density mounting. Common type connector has SMB, MCX, MMCX, SMP(GPO), SMPM(GPPO, SSMP), QMA, 1.0/2.3 etc.

■ Snap-On offers easy and quick mating and de-mating

■ Snap-Lock offers easy mating with the additional mechanical security of a secondary lock

■ Push-On is used for testing or when other features in the application provide location
