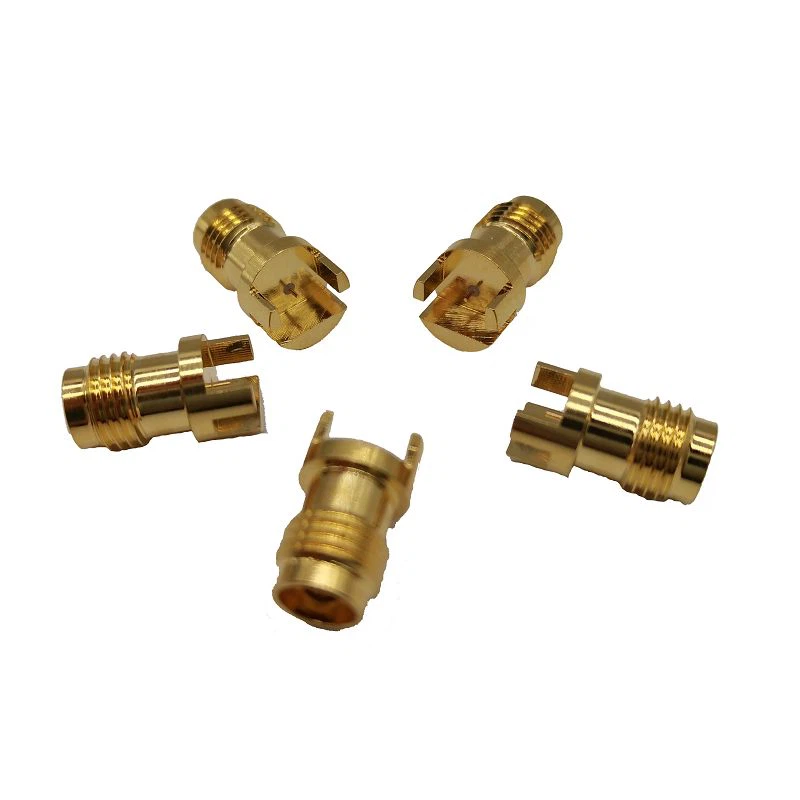

2.4 mm Edge Mount Connector

Main Information

Description: 2.4mm Female PCB Edge Mount Connector, .071" PCB Thickness

●Frequency Range: DC to 50 GHz
●Mechanically compatible with 1.85 mm, V Series
● Low VSWR and Insertion Loss
● Body Material: Brass

● Center Contact Material: Beryllium Copper

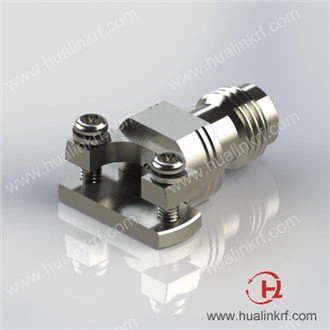

2.4mm Female PCB Edge Launch Connector .071" PCB Thickness

Introduction

Hualink high-performance edge mount precision grade connectors designed for use with microwave applications requiring excellent performance up to 50 GHz.

This 2.4mm female connector uses shield attachment of clamp/solder (captive contact) attachment for the contact.

Hualink offers an extensive line of 2.4mm precision adapters, receptacles, and cable connectors for various semi-rigid and flexible coaxial cables.

Specification

Features and Benefits

● Low VSWR

● Low Insertion Loss

● Ruggedized construction for repeatability and reliability

● .062" PCB Thickness

Applications

● Satellite Communication Equipment (SATCOM)

● Works on microstrip and grounded coplanar waveguide (GCPW) designs

● Signal-layer microstrip and GCPW test boards available.

● High Speed Data Products’ test

● Optical Module Test

Outline Drawing

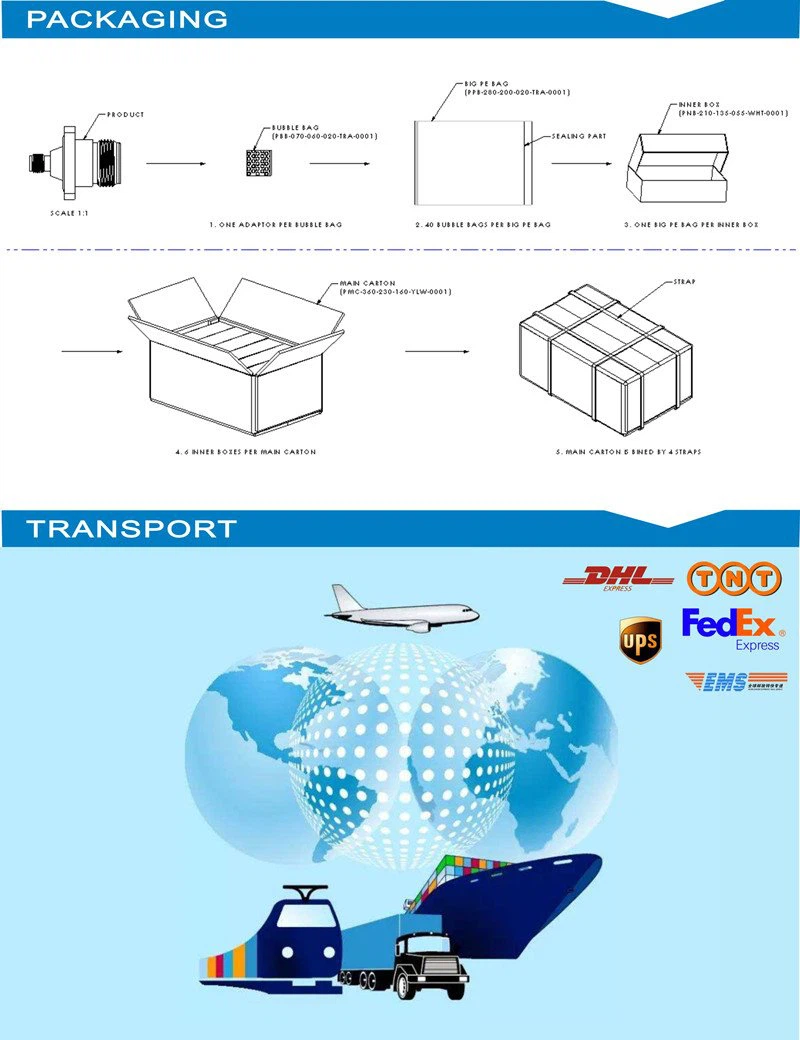

Packaging, Shipping

FAQ

1. The difference between 2.92 and SMA or 3.5mm

The male pin is shorter than that of an SMA or 3.5mm to ensure that the outer contacts of the male and female connectors engage before the pin and female receptacle do. This ensures that the pin and socket will not see excessive wear and mating stress seen by misalignment in an SMA or 3.5mm connector. The 2.92mm connector also has a thicker wall than a standard SMA. The 2.92mm series mates with SMA and 3.5mm connectors

2. Description of BNC Connectors

BNC Connectors are developed in the late 1940s as a miniature version of the Type C connector. BNC stands for Bayonet Neill Concelman and is named after Amphenol engineer Carl Concelman. The BNC product line is a miniature quick connect/disconnect RF connector. It features two bayonet lugs on the female connector: mating is achieved with only a quarter tum of the coupling nut BNCS are ideally suited for cable termination for miniature to subminiature coaxial cable(rg-58, 59, to RG-179, RG316,ect.)

50 ohms BNC connectors are miniature, lightweight units useable up to 11 GHZ and typically yield low reflection through 4 GHZ. Designed to accommodate a large variety of RG and industry standard cables, BNC connectors are available in crimp/crimp, clamp/solder, SURETWIST, and field serviceable termination styles. A full line of printed circuit board receptacles, bulkhead receptacles, resistor terminations, and other accessories complement the product offering

A variety of our 50 BNC connectors are recognized under the Component program of Underwriters Laboratories, Inc.

These connectors are ideal for use with medical equipment and test instrumentation where safety cannot be compromised.

3. How to use an adaptor?

Adapters are used to make reliable transitions from one connector interface to another. They are typically used for test and measurement, between equipment mounted connectors and devices under test. Adapters are available in-series and between series. Push-on versions are also available with slide-on interface instead of screw-on allowing significant time saving. Hualink also provide quick adaptors. They provide increased test speed, higher test coverage and maximum through-put.
