W1 Female Connector Thread-in

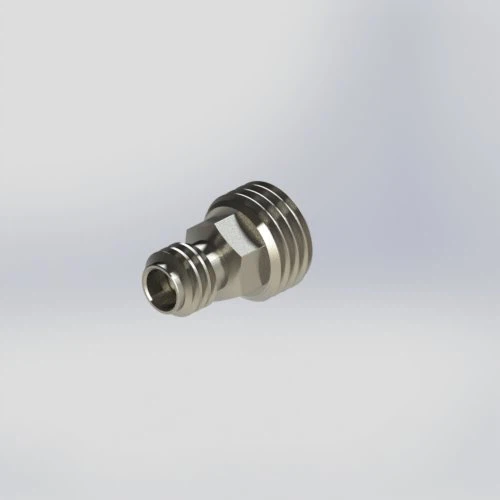

Name: W1 Female Connector Thread-in
Brand: Hualink
SKU: 141321204

Description: 1 mm, Female, Straight, Thread-in Connector (SUS), Accept .009" Pin, Work to 110 GHz
● VSWR: 1.30 Max @ 110 GHz
● Insertion Loss: ≤ 0.63 dB @ 110 GHz
● Durability: ≥ 500 Cycles
● Body Material: SUS 303
● Solderless & Removable Design

Send Inquiry

Description

Introduction

Hualink 1 mm female thread-in connector includes air dielectric, passivated stainless steel body, and heavy gold plated beryllium copper. This 1 mm female connector is developed for application up to 110 GHz and accepting .009 inch pin, it's easy to connect and disconnect on panel, which help customers to upgrade system easily. It's widely used in waveguide to RF coaxial adaptor.

Specification

Electrical
● Impedance: 50 Ω	● Insulation Resistance: 1000 MΩ Min
● Frequency Range: DC – 110 GHz	● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level)
● VSWR: 1.30 Max @ 110 GHz	● Contact Resistance: ≤ 3 mΩ (Center Contact)
● Insertion Loss: ≤ 0.63 dB @ 110 GHz	≤ 2 mΩ (Outer Contact)
Mechanical
● Mateable with W1 Series	● Center Contact Retention Force: 3 lbs Min
● Durability: ≥ 500 Cycles	● Coupling Torque: 3.6 – 4.4 lb-in Recommended
Environmental
● Temperature Range: -55 ℃ to + 165 ℃
Material & Finish
● Body: Stainless Steel, Passivated	● Dielectric: Engineering Plastic, Natural
● Center Contact: Becu, 30 μ" Gold

Features and Benefits

● Gold Plated heat treated Becu Contact

● Thread-In Design

● DC - 110 GHz

● Systemization

Applications

● 5G

● Waveguide to RF Coaxial Adaptor

● Limiters/Detectors etc.

● General Purpose Test

FAQ

1. A measure of how much power is reflected

■ Return Loss: The portion of a signal that is lost due to a reflection of power at a line discontinuity. Return Loss is similar to VSWR and is generally preferred in the CATV industry to a VSWR specification

Return Loss = Ratio of reflected to incident power in dB

■ VSWR: Acronym for Voltage Standing Wave Ratio. VSWR is the ratio of voltage applied to voltage reflected. It is the major factor contributing to the total signal efficiency of the connector.

VSWR = Ratio of maximum to minimum electric field (Voltage)

Best performance is achieved when the impedance of the cable and the connector are the same (matched)

2. Insertion Loss

■ Insertion Loss is expressed in dB, and is a measure of the total loss of power going through a device

IL = -20*log (Pout/Pin)

■ Includes losses due to reflection (usually the dominant factor unless the Return Loss is very low <-26 dB), plus losses due to the dielectric and metal conductors (Attenuation)

3. Passive Intermodulation Distortion

■ Spurious Signals created by non-linear mixing of 2 or more frequencies in a passive device

F_IM3 = 2* F1-F2

■ dBm: measure of power relative to 1 milliwatt

■ dBc: measure of dB below a specified carrier level
