Type N RF Terminations
Description: Type N Terminations / Loads, frequency up to 18 GHz, input Power 2 to 500 watts.
● VSWR: 1.50 Max. @ 18 GHz
● Input Average Power: 2W@25℃, derated linearly to 0 watts @ 125℃
● Pear power: 0.1kW to 5 kW (5μs pulse width, 1% duty cycle)
● Body Material: Ternary alloy plated brass
● Center Contact Material: Brass or Becu gold plated
● Heat sink Material: Black aluminum
Description
Introduction
Hualink offers 2 watts millimeter wave terminations/loads (also called RF load or dummy load)from DC to 67GHz with in ruggedized passivated stainless steel connector SMA, 2.92mm, 2.4mm, 1.85mm, with heavy gold plated Beryllium copper (BeCu) center contacts. Our termination has female or male gender and offers excellent VSWR.
Specification
Electrical | |
● Impedance: 50 Ω | ● Input Power: 2 to 500 Watts |
● Frequency Range: DC – 18 GHz | ● Peak Power: 0.1kW to 5 kW (5μs pulse width, 1% duty cycle) |
● VSWR: 1.50 Max @ 18 GHz | |
Mechanical | |
● Durability: ≥ 500 Cycles | ● Coupling Torque: 12-15 lb-in Recommended |
Environmental | |
● Temperature Range: -55 ℃ to +125 ℃ | |
Material & Finish | |
● Connector: Brass, Ternary alloy plated | ● Housing: Aluminum blacken anodize |
● Male Center Contact: Brass, Gold Plated | ● Female Center Contact: Beryllium Copper, Gold Plated |

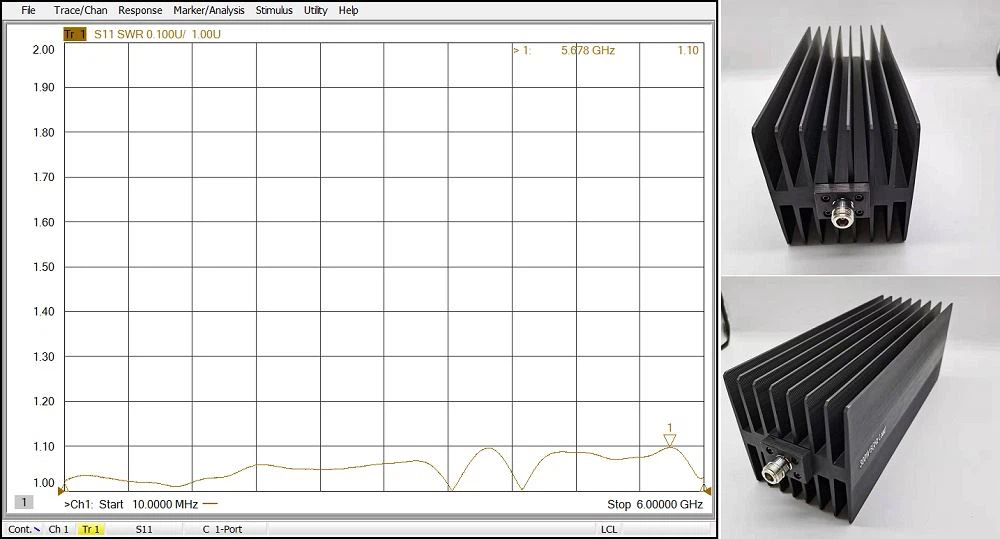

Typical Performance Data (@ 25℃)
DUT: Type N Female 300 watts terminations, DC-6GHz
Features and Benefits
● Miniature in size, rugged structure
● Input Power: 2 to 500 watts
● Operating Frequency of 18 GHz Max. (Frequency options: DC-4 GHz, DC-8 GHz, DC-12.4 GHz, DC-18 GHz)
● Exceptionally low VSWR
● 100% RF Test
Applications
● Wireless
● Radar systems
● characterization
● SatCom
● EMI, EMC Test
● Commercial & Military communication
FAQ
What are the distinguishing advantages of Hualink's terminations?
■ We use a Beryllium Copper spring contact to compensate the mechanical shrinkage over temperature changes.
■ Hualink utilizes high quality stainless steel or brass materials for the connectors which are machined to tight tolerances. The female center contact pin is gold plated BeCu to ensure reliable multiple matings.
■ Typical delivery for our terminations is one week delivery.
■ we offers the widest selection of coaxial terminations from DC to 67 GHz, available in SMA, N type, 2.92mm, 2.4mm, 1.85mm, male or female genders.

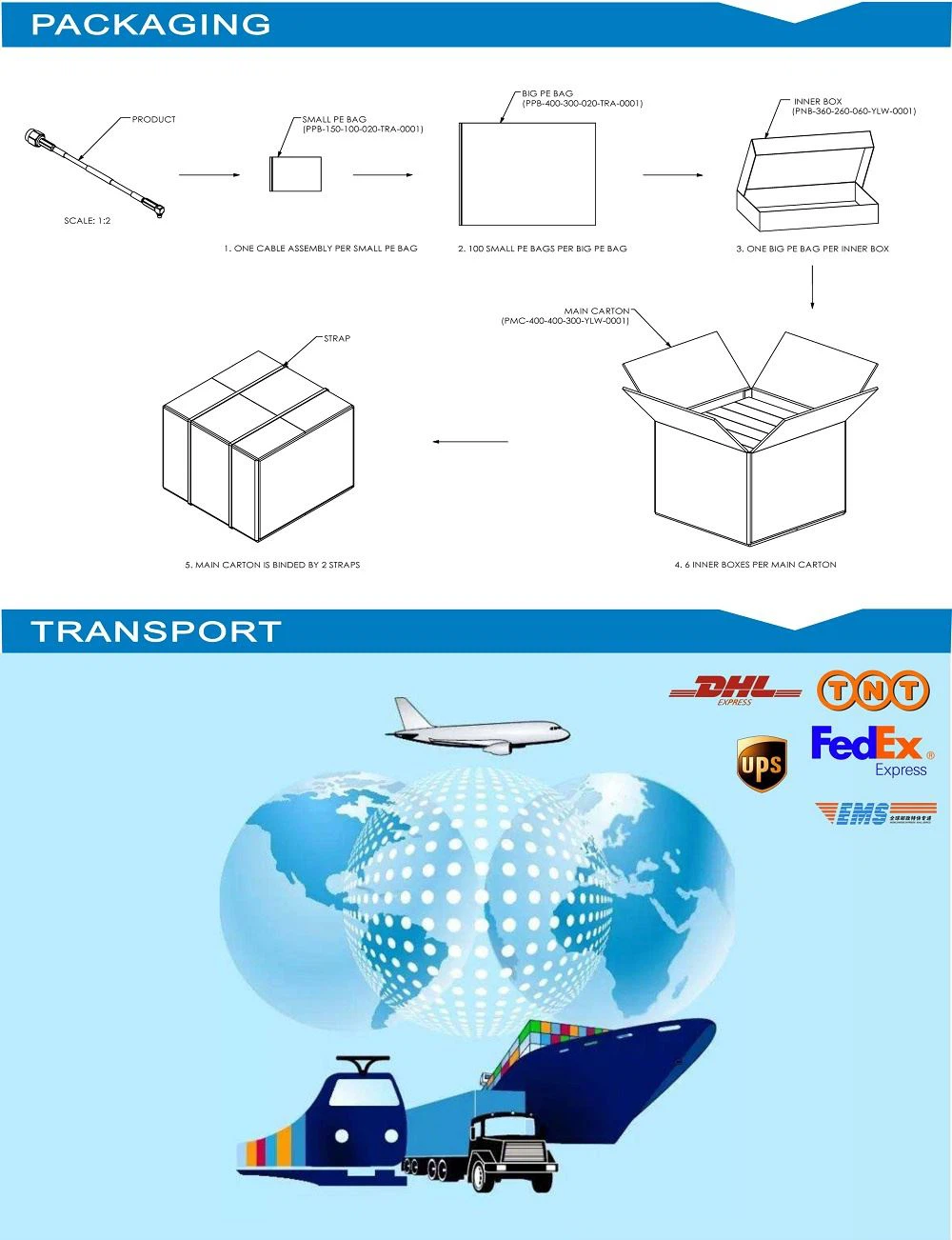

Packaging, Shipping
