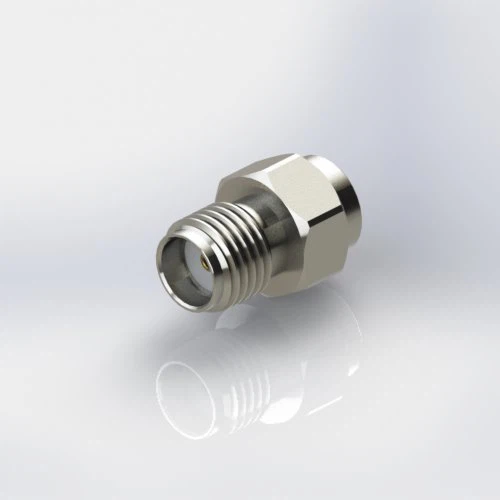

SMA 2.92 mm 2.4 mm RF Terminations
Description: SMA 2.92mm 2.4mm 1.85mm RF Terminations / Loads, frequency up to 67 GHz, input Power 2 watts.
● VSWR: 1.35 Max. @ 67 GHz
● Input Average Power: 2W@25℃, derated linearly to 0 watts @ 125℃
● Pear power: 20W (5μs pulse width, 1% duty cycle)
● Body Material: Stainless Steel
● Center Contact Material: Brass or Becu gold plated
Description
Introduction
Hualink offers 2 watts millimeter wave terminations (also called RF load or dummy load)from DC to 67GHz with in ruggedized passivated stainless steel connector SMA, 2.92mm, 2.4mm, 1.85mm, with heavy gold plated Beryllium copper (BeCu) center contacts. Our termination has female or male gender and offers excellent VSWR. More information please contacts us.
Specification
Electrical | |
● Impedance: 50 Ω | ● Input Power: 2 Watts |
● Frequency Range: DC – 67 GHz | ● Peak Power: 20W (5μs pulse width, 1% duty cycle) |
● VSWR: 1.35 Max @ 67 GHz | |
Mechanical | |
● Durability: ≥ 500 Cycles | ● Coupling Torque: 7-8 lb-in Recommended |
Environmental | |
● Temperature Range: -55 ℃ to +125 ℃ | |
Material & Finish | |
● Connector: Stainless Steel, Passivated | ● Female Center Contact: Beryllium Copper, Gold Plated |
● Male Center Contact: Brass, Gold Plated | |
Typical Performance Data (@ 25℃)
DUT: 2.92mm male 2 watts terminations
Features and Benefits
● Miniature in size, rugged structure
● Input Power: 2 watts, 5 watts available
● Operating Frequency of 67 GHz Max.
● Exceptionally low VSWR
● 100% RF Test
Applications
● Instrumentation
● Precision measurements
● characterization
● Production systems
● EMI, EMC Test
● Shielding Box Test
FAQ
1. What is a RF Terminations?
RF Loads, also known as Terminations are used to prevent signals from flowing back into a transmission line causing unwanted distortion and power loss. Terminations are available for coaxial transmission lines and waveguide. RF load/terminations are indispensable components in many RF, microwave and millimeter wave systems where signal reflection from unused ports can potentially damage the device or reduce the signal integrity. By using a termination on an unused port with a matched load (dummy load), the incident energy will be absorbed with minimal reflection. These termination components are commonly used to terminate devices such as couplers, circulators, and switches. They are also widely used in measurement systems to ensure accurate results.
