SMA Female 2 Hole Panel Connector
Description: SMA, Female, Straight, Receptacle, Panel Connector (SUS), Accept .012" Pin, For Panel Application, up to 26.5 GHz
● V.S.W.R.: 1.30 Max @ 26.5 GHz
● Insertion Loss: ≤ 0.31 dB @ 26.5 GHz
● Mating/unmating cycles: ≥ 500 Cycles
● Body Material: Stainless Steel
● Center Contact Material: Beryllium Copper
Description
Introduction
Hualink SMA 2 holes flange connector is consisted of a PTFE insulator, a passivated stainless steel body, and a 30u" gold plated beryllium copper. This SMA Jack 2 holes flange connector is developed for reaching 26.5 GHz and accepting .012" Launch pin. 2 pieces design make it easy to install and uninstall on PCB, which help customers to upgrade their devices easily just adding few cost. It's widely used in filters, amplifiers etc.
Specification
Electrical | |
● Impedance: 50 Ω | ● Insulation Resistance: 5000 MΩ Min |
● Frequency Range: DC – 26.5 GHz | ● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level) |
● VSWR: 1.30 Max @ 26.5 GHz | ● Contact Resistance: ≤ 3 mΩ (Center Contact) |
● Insertion Loss: ≤ 0.31 dB @ 26.5 GHz | ≤ 2 mΩ (Outer Contact) |
Mechanical | |
● Mateable with 3.5 mm, 2.92 mm, SMK, K Series | ● Center Contact Retention Force: 6 lbs Min |
● Durability: ≥ 500 Cycles | ● Coupling Torque: 7-10 lb-in Recommended |
Environmental | |
● Temperature Range: -65 ℃ to +165 ℃ | |
Material & Finish | |
● Body: SUS303, Passivated | ● Dielectric: PTFE, Natural |
● Center Contact: Beryllium Copper, 30 μ" Gold | |
Features and Benefits
● 30 u" Gold Plated Beryllium Copper Contact
● 2 Holes Flange Design
● High Frequency of 26.5 GHz Max.
● Low RF Leakage
● Superior reliability
Applications
● Instrumentation
● Satellite Communication Equipment (SATCOM)
● filters, amplifiers
● More Test or fields
Product details

Outline Drawing

Related Products
Hualink PN | DESCRIPTION | Picture |
SMA-S-PF-HPP-ST-TR0090-W1 | SMA Female Straight Receptacle |
|
SMA-S-PF-HPP-ST-TR0120-01 | SMA Female Straight Receptacle |
|
SMA-P-PF-HPP-ST-TR0120-W1 | SMA Male Straight Receptacle |
|
SMA-S-PF-HPP-ST-TR0120-W4 | SMA Female Straight Receptacle |
|
SMA-P-PF-HPP-ST-TR0150-W1 | SMA Female Straight Receptacle |
|
SMA-S-PF-HPP-ST-TR0150-W1 | SMA Female Straight thread-In Connector Accept .015 pin |
|
SMA-S-PF-HPP-ST-TR0150-W6 | SMA Female Straight Receptacle |
|
SMA-P-PF-HPP-ST-TR0180-W1 | SMA Male Straight Receptacle |
|
SMA-S-PF-HPP-ST-TR0180-W1 | SMA Female Straight Receptacle |
|
SMA-S-PF-HPP-ST-TR0180-W5 | SMA Female Straight Receptacle | ![]() |
SMA-S-PF-HPP-ST-TR0200-W1 | SMA Female Straight Receptacle |
|
SMA-S-PF-HPP-ST-TR0200-W4 | SMA Female Straight Receptacle |
|
SMA-S-P-HF-ST-TR0360-01 | SMA Female Straight Receptacle |
|
FAQ
1. Power Handling Capability
There are 2 types of power handling (expressed in watts) that must be considered
■ Average Power
Average Power - the input power to a cable/connector which will produce a maximum safe center conductor temperature under steady-state conditions when terminated with a matched load.
A safe center conductor temperature is one that will not melt the dielectric.
■ Peak Power
Peak Power-is limited by the voltage rating of the connector. The peak power is determined by the equation V^2/Z where V=the peak voltage rating and Z is the characteristic impedance

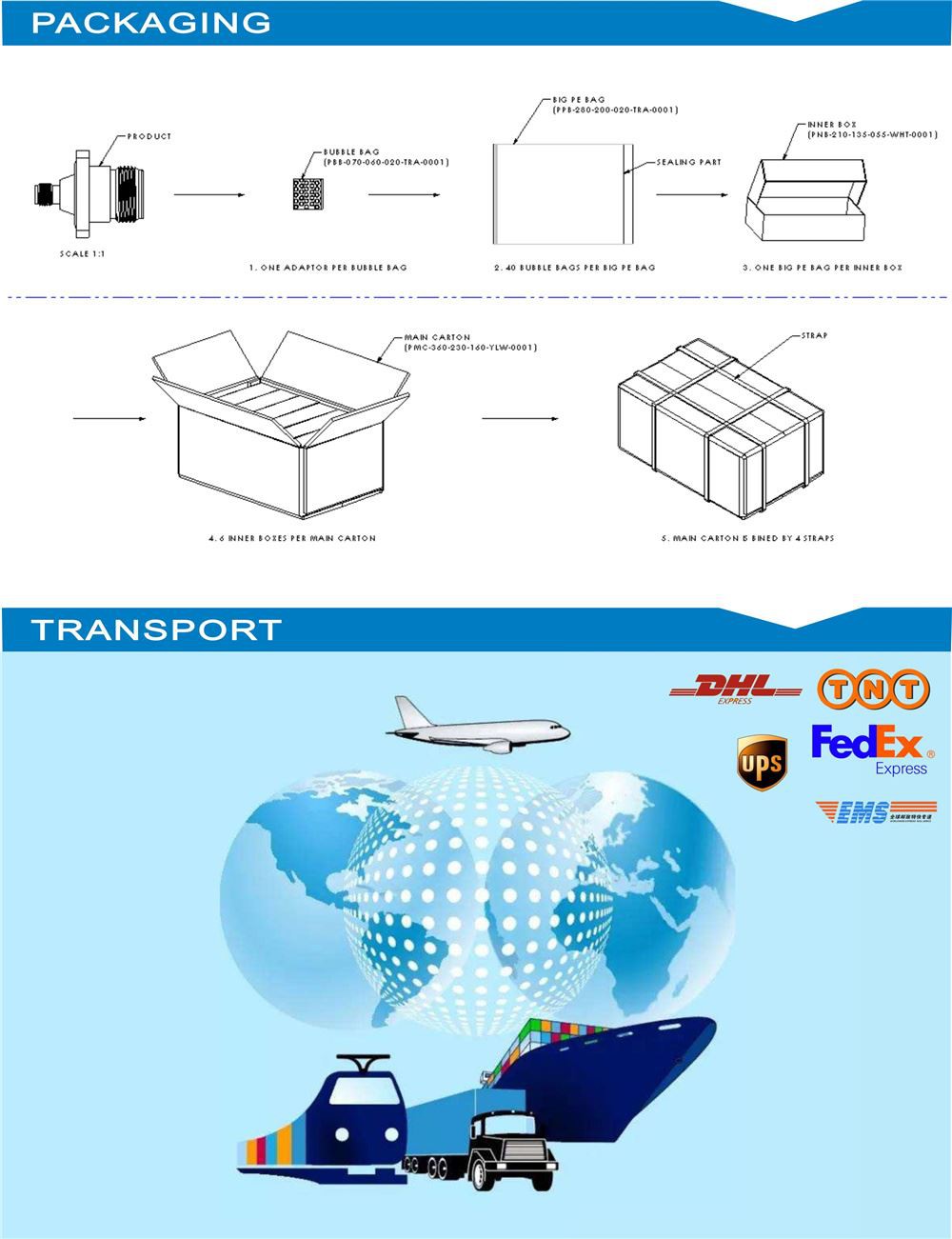

Packaging, Shipping
