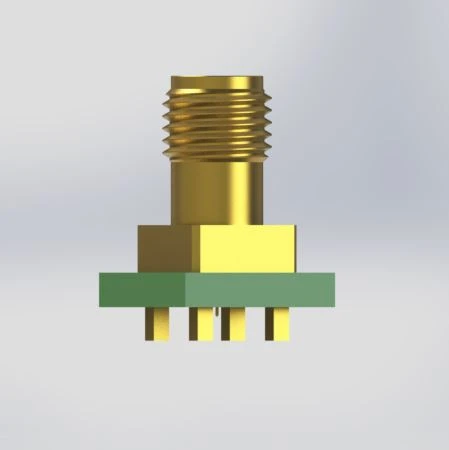

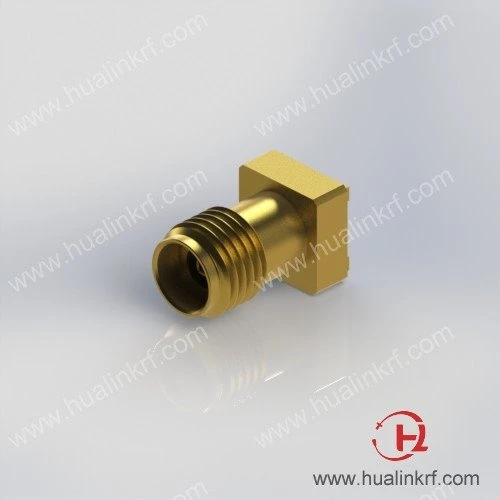

K Jack Through Hole RF Connector
Description: 2.92 mm, Female, Straight, Through Hole, PCB Connector with .007" Pin, Work to 40 GHz
● VSWR: 1.30 Max @ 40 GHz
● Insertion Loss: ≤ 0.38dB @ 40 GHz
● Durability: ≥ 500 Cycles
● Body Material: Brass
● Center Contact Material: Beryllium Copper
● 1/4-36 UNS-2A Thread Coupling
● Accepts Customization
Description
Introduction
Hualink 2.92 mm female vertical through hole PCB connector has a 50 ohms impedance and provides a minimum frequency of DC and a maximum frequency of 40 GHz. This K connector has a brass body with gold plating and has a Beryllium Copper contact pin. The 2.92 mm Female has outer thread design with 1/4-36 UNS-2A to provide very stable connection. K Jack PCB RF connector can solder feet and center contact by wave solder or reflow solder way. This 2.92 mm Female was designed with very small size (small Inner Diameter of Body & small contact pin) to provide possible good impedance matching at the joint of PCB & Connectors. If need, Hualink can also provide simulation service with PCB. 2.92 mm series provide mm wave signal, which is widely applied to Ka wave band.
Specification
Electrical | |
● Impedance: 50 Ω | ● Insulation Resistance: 5000 MΩ Min |
● Frequency Range: DC – 40 GHz | ● Dielectric Withstanding Voltage: 500 Vrms Min (Sea Level) |
● VSWR: 1.30 Max @ 40 GHz | ● Contact Resistance: ≤ 3 mΩ (Center Contact) |
● Insertion Loss: ≤ 0.38 dB @ 40 GHz | ≤ 2 mΩ (Outer Contact) |
Mechanical | |
● Mateable with SMA, 3.5 mm, SMK, K Series | ● Center Contact Retention Force: 6 lbs Min |
● Durability: ≥ 500 Cycles | ● Coupling Torque: 7-8 lb-in Recommended |
Environmental | |
● Temperature Range: -55 ℃ to +85 ℃ | |
Material & Finish | |
● Body: Brass, 10 μ" Gold | ● Dielectric: Engineering Plastic, Natural |
● Center Contact: Beryllium Copper, 30 μ" Gold | |
Features and Benefits
● Gold Plated Beryllium Copper Contact
● Durable
● Operating Frequency of 40 GHz Max.
● Through-hole design for high-reliability products that require stronger connections between PCB layers, not only soldering on the surface of the board, which withstands more environmental stress.
Applications
● Medical
● Rail
● Car
● Deep-sea detection

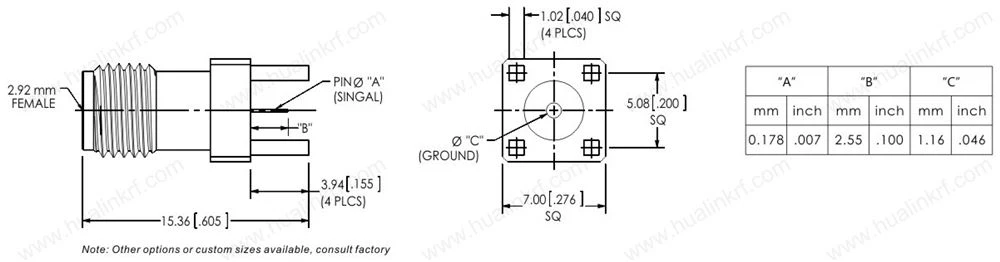

Outline Drawing
FAQ
1. What is a Connector?
A connector is a device used to connect to cables or other devices through which electromagnetic energy is transferred from one place to another.
■ Creates many impedance variations or discontinuities in a very short distance
■ Reflections are important, Attenuation not as important
2. What do connectors connect?
a) One side is typically a standard interface that mates to another interface
b) The other side typically connects to a transmission line like a cable or PCB
c) Adapters connect one interface to another
3. Hualink 2.92mm/ K Connectors
The 2.92 mm series are similar in structure to the 3.5 mm series. They also adopt the reliable method of threaded connection, but with smaller size and the operating frequency can reach up to 40 GHz. It is widely used in communications, precision testing, automobiles, satellites, and radars, radio astronomy and other millimeter wave fields. The dielectric adopts the air. With reliable structure, small size, high precision and wear resistance, the 2.92mm series interface is compatible with SMA, 3.5 mm series connectors.

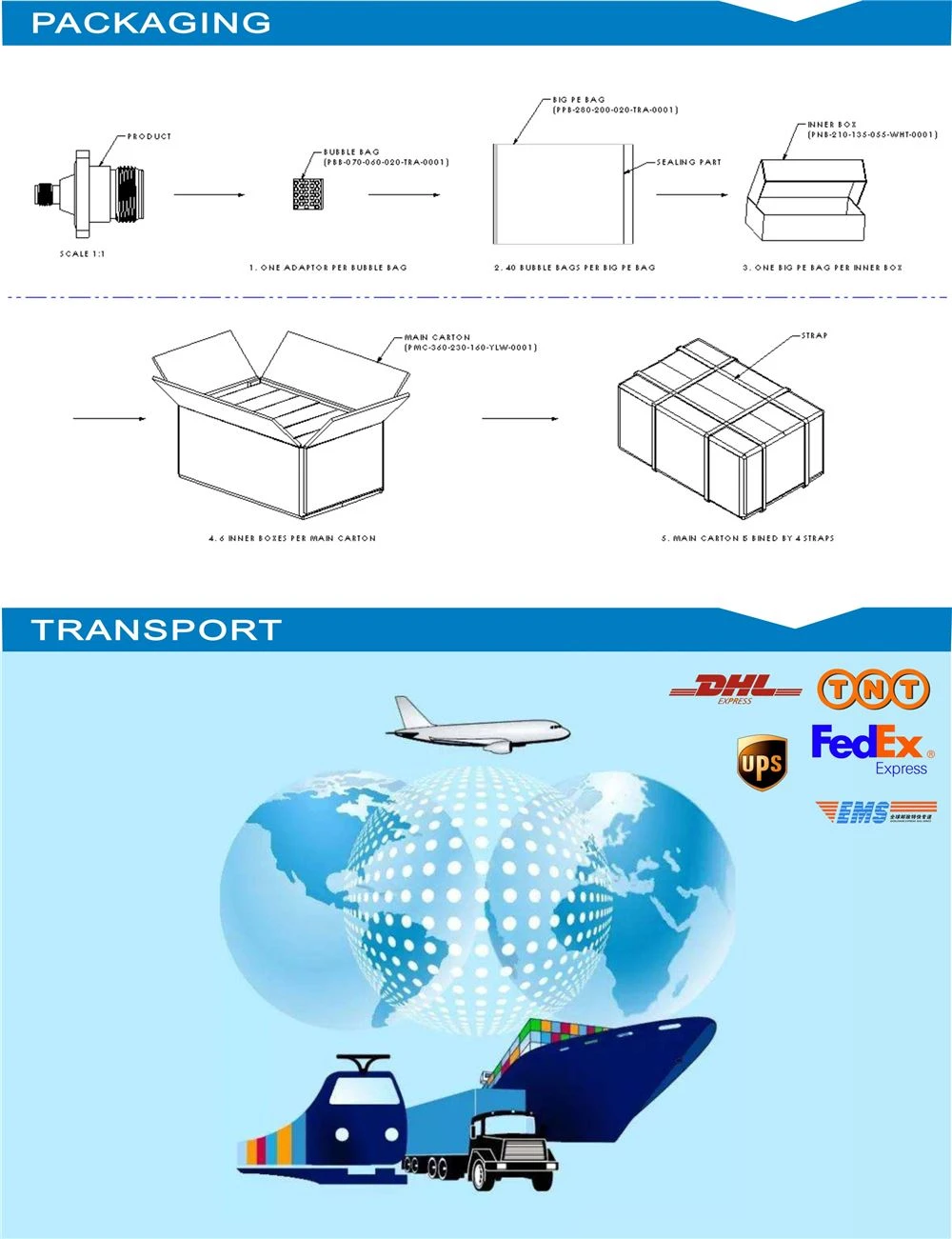

Packaging, Shipping
